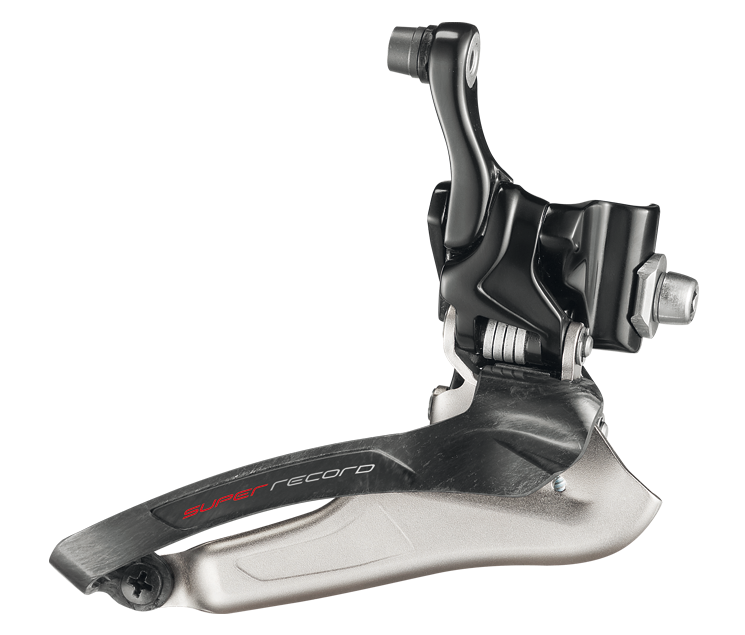

The new Super Record™ 12X2 Speed mechanical front derailleur: lightness, design, fluidity and effectiveness.
The new Super Record™ 12X2 Speed mechanical front derailleur introduces many new techniques, starting with the leverage systems designed to speed up derailings. Less effort is needed to shift owing to the split front connecting rod, which prevents contact with the travel limit screw. Whilst the shape of the inner cage plate is engineered to guarantee maximum readiness for upshifting, the external monolith body in carbon fibre has been shaped to enhance the efficiency of the chain movement when going uphill and the readiness and fluidity in descent.
The aesthetic impact of the component is consistent with the rest of the Super Record groupset due to the use of unidirectional carbon fibre and titanium stop screws. Micro-adjustments to the front derailleur position, which can be activated by the controls, help to prevent any contact with the chain, even in the case of maximum crossover. As regards compatibility, the new Super Record™ 12X2 Speed front derailleur allows the use of hoods measuring up to 32 mm thanks to the new upper connector rod and the double fixing position of the control cable.
Features & Benefits
Built of forged aluminium and unidirectional carbon fibre with titanium stop screws
Designed for utmost efficiency in shifting and to match the aesthetics of the rest of the group
The upper connector rod is not connected to the external one
More effective and accurate movement; user does not perceive contact with the end stop
Fork designed to improve maximum chain crossover
The front derailleur prevents contact and friction with the drivetrain
Ideal for wider hoods
Possibility of mounting tyres measuring up to 32 mm in width without risking contact with the front derailleur
Optimised design of the inner fork
Accurately accompanies the chain on the largest chainring
Two fixing points for the cable
Fully compatible with frames
Position optimised for all chainrings
Zero risk of contact with the chain
